Specs

Mechanical

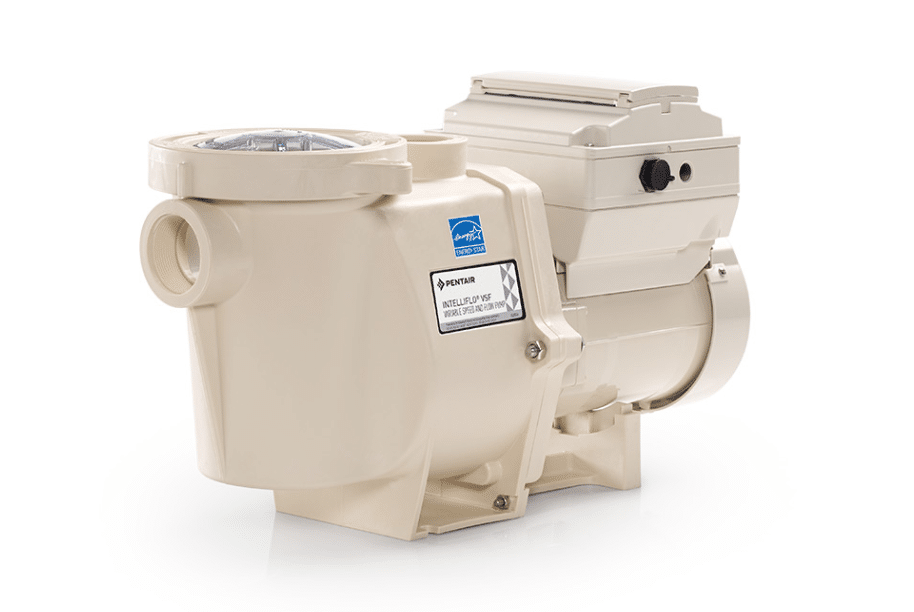

  • Variable speed pumps
  • Operate from 400 RPM to 3450 RPM
  • Maximum system flow of 160 GPM
  • Two automatic actuation valves

Lighting

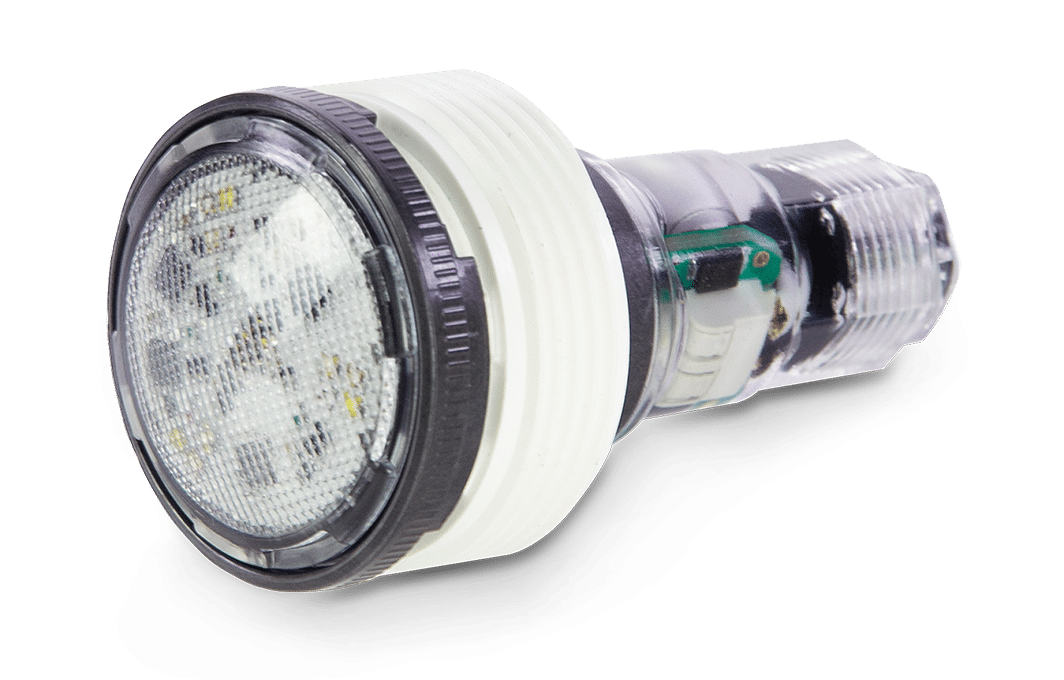

  • Color changing LED light
  • 12V/14W
  • Pool & Spa LED light with RGBW Technology
  • 180° Beam for complete coverage

Proudly Made In Canada

Heating

  • 400000 BTU/Hour master temp heater
  • Natural gas or propane
  • 30°c/hour temp increase in -10°c weather
  • 120/240 V AC, single phase, 60 HZ

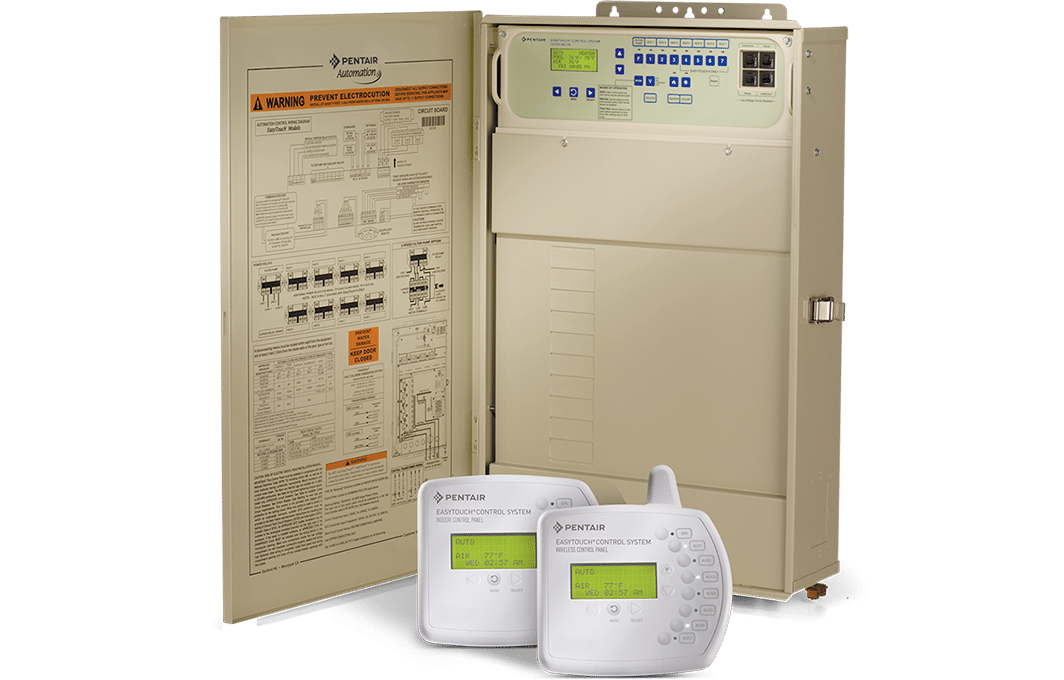

Pool & Spa Control System

  • Easy touch screen logic app for PC/Smart Phone & Tablets
  • 40 Amp service

CSA/UL Cert: Must be installed by qualified electrician to meet local code requirements

FAQ

Where can Modpools be shipped?

The beauty of our pools being constructed from a shipping container is the ease of transportation. Our Modpools can be shipped worldwide. Shipping is not included in the Modpool base price as it is dependant on location.

Does the window come standard?

The window is not included in the base price. Most of our windows on the side walls are 4×8 or 4×10. Some customers choose a 4×6 end wall window OR a combination. Custom sizes also available.

How long will it take for my Modpool to be manufactured?

Each Modpool is built to suit our individual customer’s site. Lead times are dependant on the number of customers ahead of you in the fabrication queue. Please contact us for up-to-date lead times!

How do I install a Modpool?

Modpools can work with your local contractors, advising on proper installation procedures. Ground prep will likely be required, the most common and cost effective is 8” of compacted gravel. A concrete slab is also a popular method for placing our Modpools on. Please note, these are the most common methods and various alternatives exist.

Once our Modpools are placed, only two service connections need to be made:
1) Natural gas/propane for our heater
2) 40 amp electrical service and designated ground wire.

How much does a Modpool cost?

8’X12’: $16,500 USD | $21,900 CAD
8’X20’: $29,900 USD | $37,900 CAD
8’X40’: $39,900 USD | $49,900 CAD

What are the measurements & weight ?

12′ Modpool
Water Level: 4′
Height: 4’8″
Width: 8’2.5”
Length: 12’7″
Dry Weight: 4000 lbs
Full Weight: 20,700 lbs
Volume: 2500 gal

20′ Modpool
Water Level: 4’6″
Height: 5’2”
Width: 8’4”
Length: 20′
Dry Weight: 7,800 lbs
Full Weight: 46,200 lbs
Volume: 4800 gal

40′ Modpool
Water Level: 4’6″
Height: 5’3”
Width: 8’6”
Length: 40’2″
Dry Weight: 16,000 lbs
Full Weight: 95,000 lbs
Volume: 9600 gal

Can I have my Modpool painted a different color?

We offer the following standard colours for the exterior of your Modpool: White, Grey, Black. We offer Aqua Blue or Grey for the interiors.

How does the divider wall work?

The divider wall comes standard in our 20′ and 40′ Modpools. It is a light-weight honeycomb acrylic wall that separates your spa section from the rest of your pool. Place the divider wall, turn your Modpool to spa mode and enjoy!

Can I make my Modpool an Endless Swim Spa?

We are proudly partnered with Endless Pools and can install their Fast Lane system in our 20′ and 40′ Modpools at your request. Please ask us for more information!

Is Modpools an above or below ground pool?

Modpools can be installed both above or in-ground.

Are there pool covers available?

For all three sizes of our Modpools, we offer both an electric and manual cover option.

How many jets are in the Hot tub?

Both our 20’ & 40’ Modpools come standard with 8 body jets in the hot tub, the jets can be controlled via your smart phone.
